TX2touch robots

High productivity and safest collaboration

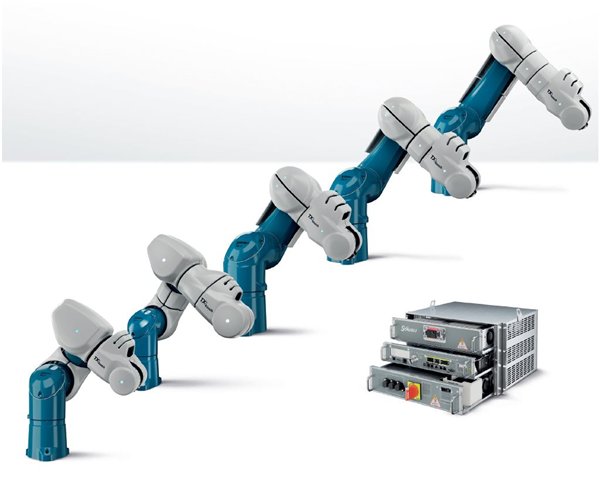

The TX2touch is a unique range of cobots designed for safe Man Robot Collaboration while maintaining high productivity. Based on the proven TX2 industrial robot, it offers safe operation thanks to its advanced skin technology, quick reaction time and embedded modular safety functions. TX2touch is the only cobot with the SIL3-PLe safety level. Itis highly productive due to the performance, smart connectivity and reliability inheritedfrom TX2 robots and its CS9 controller.

Thanks to the combined use of a set of 5 unique modular SIL3-PLe ( Safe limited speed, Safe Stop, Safe Zone, Safe tool and Safe touch) safety functionalities, the TX2touch cobot range is the safest on the market while maintaining a high level of productivity.

Safe touch skin

The skin brings a supplementary functionality to enable the following SAFE issues:

- When you touch the skin the robot stops

- When you get hit by the robot it will not hurt you

- When you get trapped by the robot it will not crush you

- It is also equipped with status lights for functional diagnosis

Gripper padding

- Skin pads for tools can be added with the same safety level

- Eases the safety certification of the robotic cell

- Protect the embedded cameras, measurements devices or gripper by preventing collisions

Lowest total cost of ownership

- Ready to move concept, no need for calibration

- No battery on the arm or in the controller

- Patented components, such as the JCS gearbox, with higher lifetime and lower maintenance issues

- Lower total cost of ownership and faster return on investment
